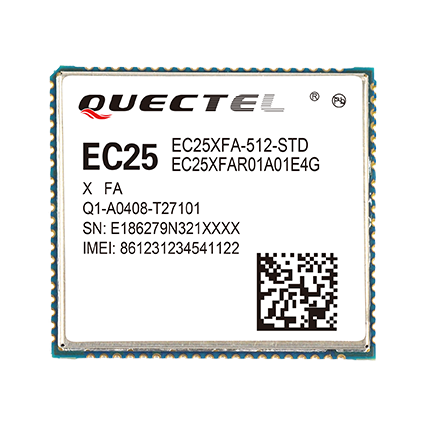

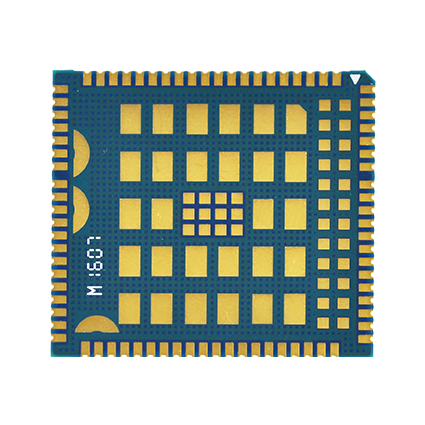

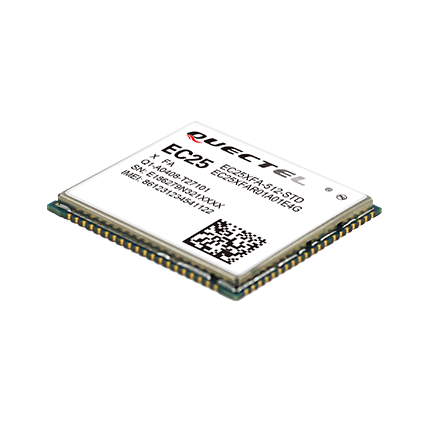

Quectel EC25IoT/M2M-optimized Cat.4 LTE Module

Device:Terminal

Vendor: Quectel Wireless Solutions

Overview

1. Description of the product EC25 series is Quectel’s new generation of LTE category-4 module, optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 10 LTE technology, it delivers 150Mbps downlink and 50Mbps uplink data rates and is fallback compatible with Quectel UMTS/HSPA+ UC20 module and multi-mode LTE EC20 module in the compact and unified form factor, providing a flexible and scalable platform for mi-grating from UMTS/HSPA+ to LTE. EC25 contains 5 variants: EC25-AU, EC25-V, EC25-A, EC25-Jand EC25-E, which makes it backward-compatible with existing EDGE and GSM/GPRS networks and ensures it can be connected even in remote areas devoid of 4G or 3G coverage. EC25 supports multiple-input multiple-output (MIMO) technology, a cutting edge antenna technology capable of transmitting multiple data streams on multiple transmitters to multiple receivers. The antennas at each end of the communication circuit are combined to minimize errors and optimize data speed. The module also combines high-speed wireless connectivity with embedded multi-constellation high-sensitivity GNSS receiver. A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows XP, Windows Vista, Windows 7, Windows 8/8.1, Linux, Android/ eCall) extend the applicability of the module to a wide range of M2M applications such as CPE, router, data card, rugged tab-let, automotive, security and industry PDA. 2. Differentiation and advantage •Cat. 4 LTE Module Max. 150Mbps (DL ) Max. 50Mbps (UL) •Dimensions 32.0mm×29.0mm×2.4mm, Approx. 4.6g •GNSS receiver available for applications requiring fast and accurate fixes in any environment •Simple migration from 3G to 4G with a flexible and scalable platform 3. Target market Awide range of M2M applications such as CPE, router, data card, rugged tab-let, automotive, security and industry PDA.

Parameter

Frequency Band:
----EC25-E for Europe
FDD LTE:
B1/B3/B5/B7/B8/B20
TDD LTE: B38/B40/B41
WCDMA: B1/B5/B8
GSM: 900/1800
----EC25-V for Verizon
FDD LTE: B4/B13
----EC25-A for AT&T
FDD LTE: B2/B4/B12
WCDMA: B2/B4/B5
----EC25-AU for Australia
FDD LTE: B1/B3/B4/B5/B7/B8/B28
TDD LTE: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
----EC25-J for Japan
FDD LTE: B1/B3/B8/B18/B19/B26
TDD LTE: B41
WCDMA:B1/B6/B19
•Extended Working Temperature: -40 °C ~ +85 °C
•Protocols: TCP/UDP/PPP/FTP*/HTTP*/SMTP*/MMS*/NTP/ PING/DTMF*/FILE*/CMUX*/QMI
•GPS/GLONASS/BeiDou/Galileo and QZSS
•USB Drivers:
USB Serial:Windows XP, Windows Vista, Windows 7,Windows 8/8.1, Linux 2.6 or later,
Android 4.0/4.2/4.4/5.0
RIL: Android 4.0/4.2/5.0
NIDS:Windows XP, Windows Vista, Windows 7,Windows 8/8.1
ECM*: Linux2.6 or later
Gobinet: Linux2.6 or later
Linux QMIWWAN: Linux3.4 or later
•Global certifications: CE*/FCC*/GCF*/PTCRB*/AT&T*/Verizon*/RCM*
•Compatible solution: Form factor and pin-out fully compatible with Quectel UC20(3G) and EC20 (LTE)
* Underdevelopment
