Ericsson’s Mature Common Platform for TD-LTE / FDD LTE, 99.999% Availability in Commercial Deployment Ericsson’s TD-LTE/LTE FDD platform portfolio, which is based on Ericsson global deployed RBS6000 seriesradio base station, is optimized to deliver high radio performance for efficient cell planning in a wide range of environments such as urban, sub-urban, in-door and highway coverage. The portfolio includes: DU: Common platform digital unit for LTE RBS6601: Main unit of main-remote architecture RRU: Remote radio unit for main-remote architecture

Parameter

Ericsson digital unit forLTE is the widest deployed digital unit system for LTE, it has below characteristics

Same Hardware, Software Configurable for TD-LTE and FDD LTE

Mature and Widely Deployed in Markets

Highly Integrated in One Single Board

Innovative Resource Pooling

No Back-plane, More Robust and Flexible

Large Capacity Supported

− 3000 connected users supported

3x20MHz @2x2 MIMO

Using smart antenna array technology in the TDD network can effectively improve the system’s performance. However it is oversized which have been presenting a series of problem: size, weight, complexity and cost of bulding construction, etc.

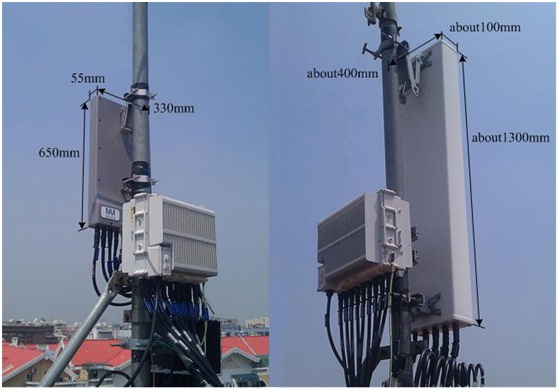

Through the corporation of R&D on multi-antenna in the industry,a breakthrough has been successfully made. By using proprietary technology, the new Minaturized-Antenna-Arrays has reduced the overall size of the traditional ones by 30% at least, whilst the atennas thickness and weight has also been significantly reduced. In addition, using cluster type connecters further low down the difficulty of bulding. The new antenna can cover F/A/D-frequencyband of China Mobile, supporting BF and MIMO application technology.
