Product

Overview

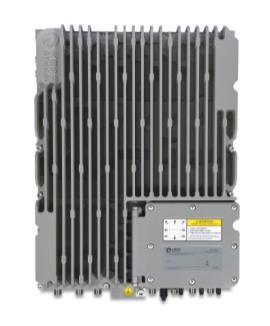

1.Description of the product DTmobile Radio Remote Unit 2.Differentiation and advantage • Zero footprint, lighter and more flexible; • TD-SCDMA &TD-LTE dual mode is supported; • High Efficiency PA Solution——CFR, DPD, Doherty etc. achieving PA Efficiency>30%; • 2*2 MIMO; Beamforming; • EEIM——Intelligent Energy Management Algorithm saving power, achieving green radio solution. • 4 level cascading， Max distance between BBU and RRU is 40KM • BBU-RRU interface supporting 10GE SFP module. 3.Target market TDD mode; Band: 1885MHz~1915MHz,2010MHz~2025MHz; Support TD-S、TD-L.

Parameter

Support Band: 1885MHz~1915MHz(F); 2010MHz~2025MHz(A)
Weight/Volume: 25kg/25L
Antenna Channel: 8
Transmission Power: 20W/Channel
Dual Mode Capacity:     F20M+FA12C/ F30M+A9C
Power Supply: -48V DC (-57V ~ -40V)/
Protection class: IP65
