Product

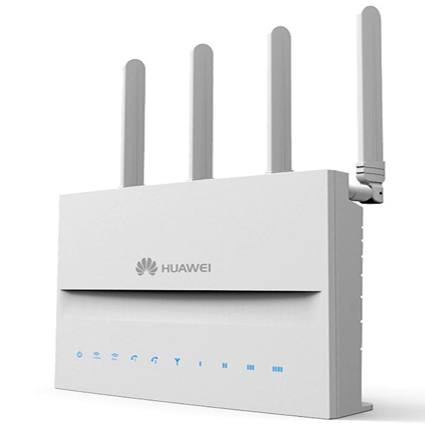

B5338-68
Device:Terminal
Vendor: Huawei Technologies Co.,Ltd.
Overview
World’s Fastest TDD Indoor CPE 1.LTE DL Cat12,UL Cat13 2.DL 420Mbps,UL 30Mbps when TDD subframe configuration 2 and special subframe configuration 7 are used 3.DL 4*4MIMO + 2CC CA(each component carrier runs in 4*4 MIMO mode only for TDD carriers) 4.DL 3CC CA,UL 2CC CA 5.UL 64QAM Global
Parameter
| Form | Indoor Unit |
| Chip platform | HiSilicon Balong750 |
| Category | LTE DL Cat12, UL Cat13 |
| Peak Rate | DL 420Mbps, UL 30Mbps |
| Protocol Version | 3GPP Release 10/11/12 |
| Operating Frequency | LTE TDD: Band 38/40/41/42/43 |
| Carrier Aggregation | DL 4x4 MIMO + 2CC CA DL 3CC CA UL 2CC CA |
| Modulation | DL 64QAM, 16QAM, QPSK UL 64QAM, 16QAM, QPSK |
| Channel Bandwidth | 5 MHz, 10 MHz, 15 MHz, 20 MHz |
| TX Power | 23 dBm ± 2 dB |
| Antenna | LTE antenna: 1T4R 2300–2690 MHz: 2 dBi 3400–3800 MHz: 5 dBi |
| MIMO | DL 2x2/4x4 MIMO |
| LTE Transmission Mode | LTE TDD: TM2, 3, 4, 7, 8, 9 DL 4*4 MIMO @ TM3/4/9 |
| OS | Windows 2000 SP4/XP SP2/Vista/Win7/Win8/Win10 Mac later than OS X 10.4 Linux |
| Interface | Two LAN Data, Wi-Fi AP, Two Voice, One USB |
| IP Networking | L2/L3 VPN/Multi-APN/IPv4/IPv6/IPv6/v4 dual stack |
| Voice | VoIP:SIP with G.729a/b, G.711a-law, G.711u-law Code |
| Terminal Management | TR069, SNMPv3, FOTA |
| Wi-Fi | 2x2 MIMO 802.11ac/b/g/n, 2.4 GHz and 5 GHz Wi-Fi |
| Wi-Fi Encryption | 64-/128-bit WEP, WPA, WPA2 |
| Protection Class | IP2X |
| Dimensions | 217.5mm * 56 mm * 170 mm |
| Weight | 650g |
| Available Time | 2016.10 |
