Product

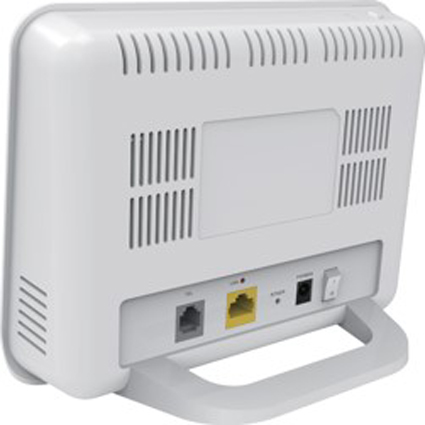

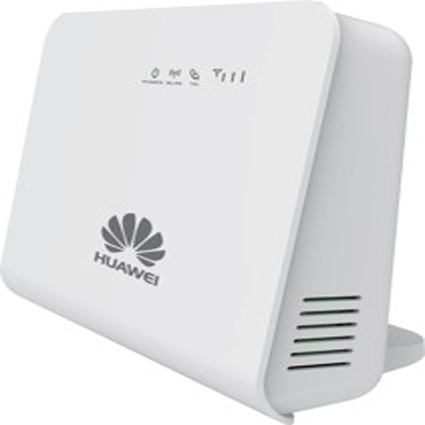

B5328-58
Device:Terminal
Vendor: Huawei Technologies Co.,Ltd.
Overview
World’s 1st 4*4MIMO TDD Indoor CPE 1.LTE Cat5 2.DL 210Mbps,UL 16Mbps when TDD subframe configuration 2 and special subframe configuration 7 are used 3.DL 4*4MIMO 4.UL 64QAM Global
Parameter
| Form | Indoor Unit |
| Chip platform | GCT GDM7243Q |
| Category | LTE Cat5 |
| Peak Rate | DL 210Mbps, UL 16Mbps |
| Protocol Version | 3GPP Release 10 |
| Operating Frequency | LTE TDD: Band 34/38/39/40/41 |
| Carrier Aggregation | / |
| Modulation | DL 64QAM, 16QAM, QPSK UL 64QAM, 16QAM, QPSK |
| Channel Bandwidth | 5 MHz, 10 MHz, 15 MHz, 20 MHz |
| TX Power | 23 dBm ± 2 dB |
| Antenna | LTE antenna: 2T4R 3dBi built-in antenna |
| MIMO | DL 2x2/4x4 MIMO |
| LTE Transmission Mode | LTE TDD: TM2, 3, 4, 7, 8, 9 DL 4x4 MIMO @ TM3/4/9 |
| OS | Windows XP above SP3/Vista/Win7/Win8/Win10 MAC Linux |
| Interface | One LAN Data, Wi-Fi AP, One Voice |
| IP Networking | L2/L3 VPN/Dual APN/IPv4&IPv6/v4v6 |
| Voice | VoIP:SIP V2 (RFC 3261) and SDP (RFC 2327)/RTP/RTCP, G.711A/μ,G.729 |
| Terminal Management | TR069, SNMPv3, FOTA |
| Wi-Fi | 802.11b/g/n, 2.4 GHz Wi-Fi |
| Wi-Fi Encryption | 64 bit WPA, WPA2 |
| Protection Class | IP2X |
| Dimensions | 192mm * 152mm * 97mm |
| Weight | 350g |
| Available Time | 2016.8 |
